The temperature of pellets is very high about 60-80 degrees and the moisture content is about 15% after pelletizing processing. So it is not easy to pack pellets. The hot and moist pellets are broken easily without being cooled. Pellet cooler can help us prevent the pellets from condensation and mild. So it is necessary to cool the pellets with a counter flow cooler to reduce moisture content. It is widely applied to cut down high temperature of pellets from the pelletizing system.

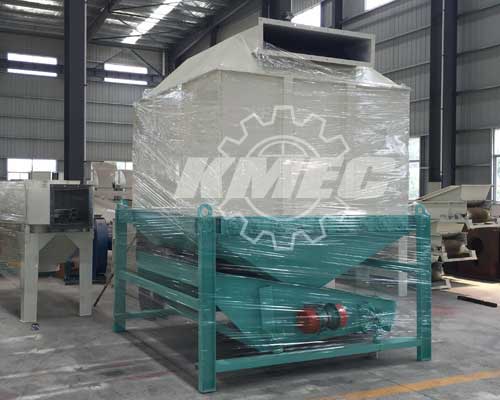

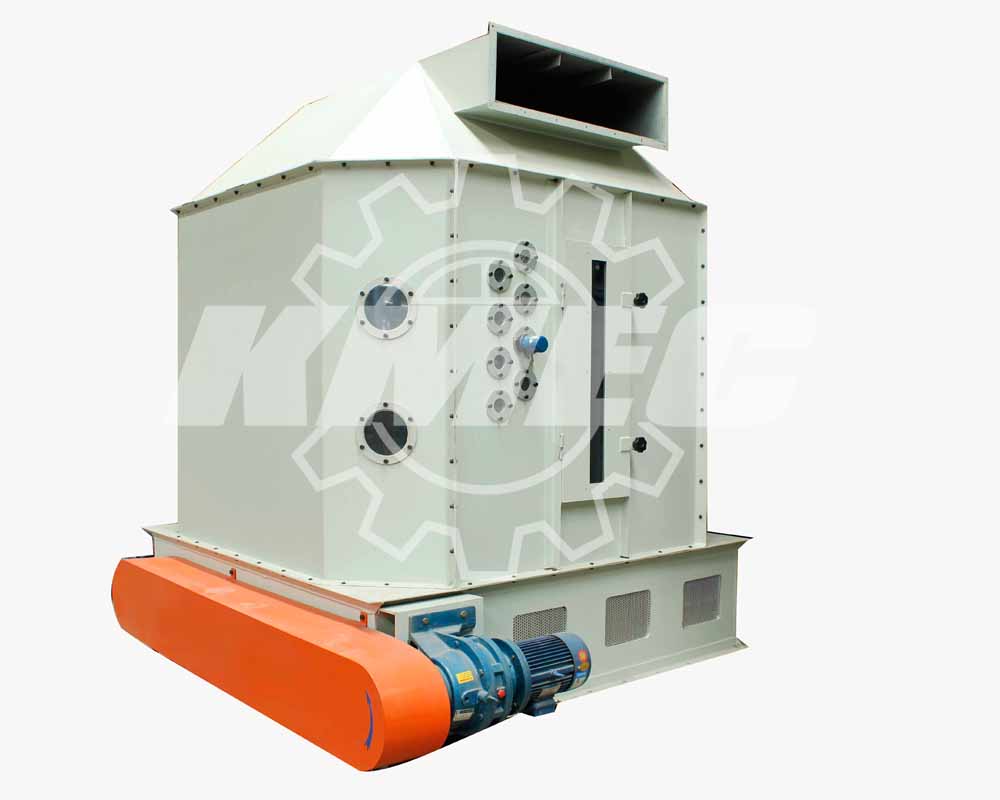

SKLN Series Counterflow Cooler

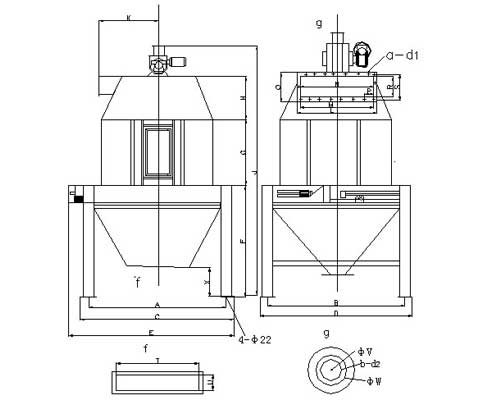

SKLN series counterflow cooler for pellets is usually separated to the following part for transport.
-
Unload system,including the base,unload bin and flow-down system.
-
Mid-bin(four parts,one with door)
-
Top shell,involving diverting device installed together.
-
Dust collector
-
Packing box ,including assemble accessories,three capacitance material levels,operation instruction,bolts and nuts,etc. The installation of electric parts is instructed on the electric control schematic diagram.

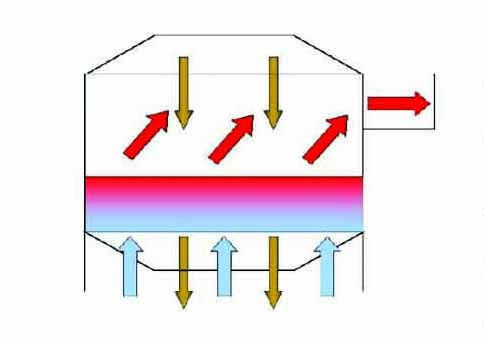

Working Principle of Cooler
The working principle of cooler is on the basis of blowing air by columns of hot and moist pellets. The airflow is opposite direction of flow of pellets, which will leads to evaporation of moisture from the pellets as well as heat. Then the pellets are cooled successfully. In order to achieve cooling request, pressure and volumetric flow air, length of column and residence time play a key role. It includes cooling chamber, blower, and intake air and cyclone assembly.
|
Why You choose KMEC's cooler |
-
High efficiency! Through cooler, the temperature of pellets would be lower than the normal temperature 3 to 5 ℃ and the moisture content will be removed by 3.5%.
|
-
Automatic discharge. Unique design sliding-valve discharging ensures cooler run stably and discharge smoothly.
|
-
The rotating sprinkle device make sure material cool equably and drastically; the countercurrent cooling method avoids direct blowing of cool air on the hot pellets, which prevents surface cracking of the pellets and maintaining high pellet quality.
|
-
The counter flow coolers can also match with secondary volute separator for combination use, which can be used to cool down all kinds of pellets.
|
